DUCT MOUNTED UV OZONE

QUICK OVERVIEW

UL certified Duct mounted uv ozone lamps

Duct mounted uv ozone designed to remove grease odours and oil from the kitchen exhaust systems.

UV OZONE LAMPS INSERTED INTO THE DUCTWORK

UV ozone lamps are installed in the ducting, with the ballast and housing located outside the kitchen exhaust ductwork.

REDUCING FIRE RISK IN THE DUCTWORK

UV exposure lessens the danger of fire related with the use of ultraviolet ozone technology by minimising the buildup of grease and oil in the ducting through photolysis and ozonolysis.

UL CERTIFIED UV LIGHTS AND BALLAST

Our certifications prove that your items have been tested in accordance with appropriate standards.

UL recognised regulatory expertise provides authorities and the market with crucial credibility.

IS YOUR UV LAMPS AND BALLAST ELECTRICAL CERTIFIED?

AOS is the only company to have uv lamps and ballast certification for safe use.

The benefit of electrical certification its safety is passed on the customer to minimise risk.

OZONE INJECTION IN THE DUCTWORK

UV ozone lamps generate ozone, which is then injected into the ducting, destroying cooking odours, grease and oil buildup.

185 NM WAVELENGTH RADIATION

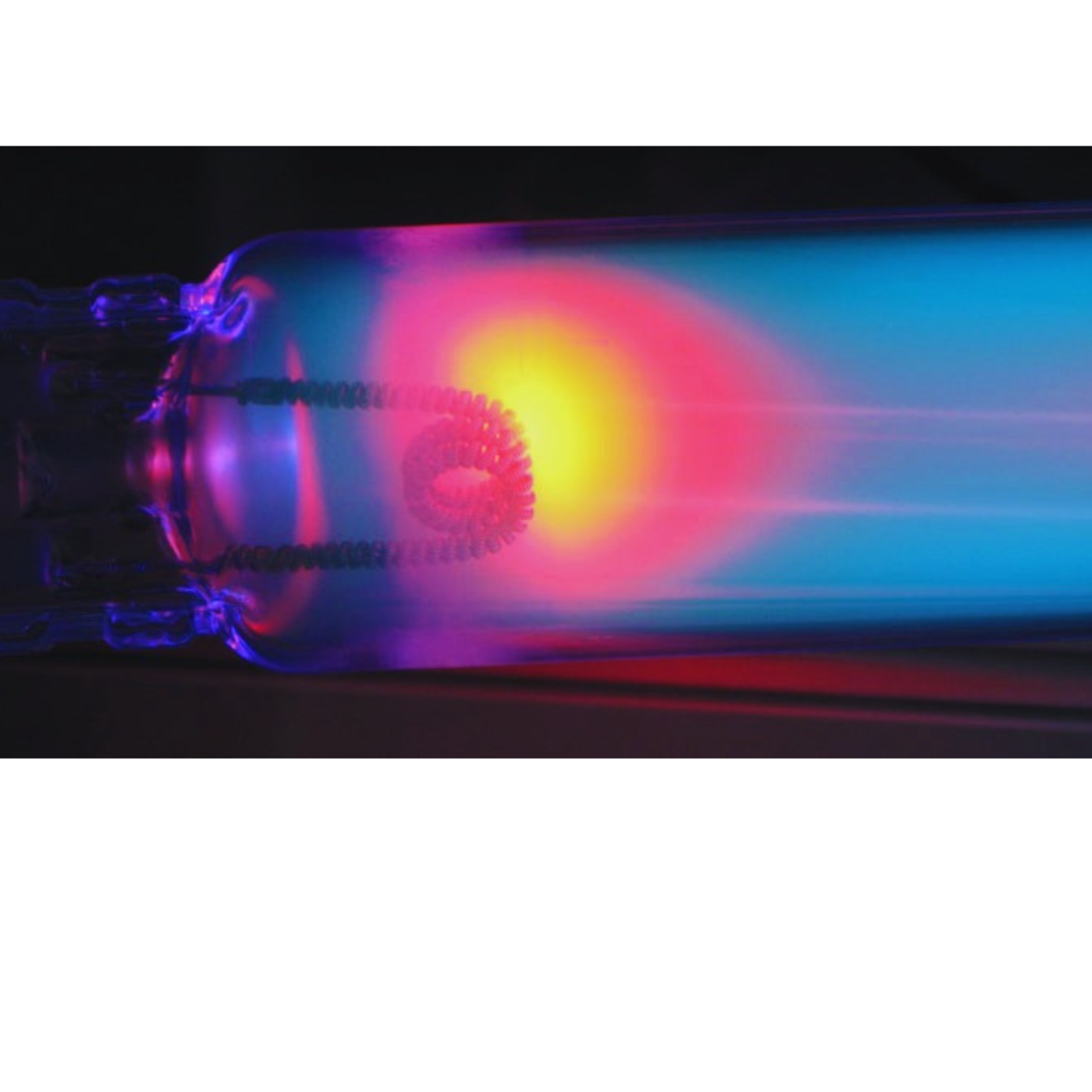

UV lights built of special fused quartz glass that emits 185 nm wavelength radiation.

LED INDICATORS

On/Off switch and two blue LED indicators for UV and ozone are situated on the front of the device.

TECHNICAL DATA DUCT MOUNTED UV OZONE

Model: DUO – 2 – 300

Construction: stainless steel 1.2 mm 304 finish

Dimensions: 503 mm long x 87 mm wide x 87 mm high

Airflow: 500 L/s

Weight: 2kg

UV Lamp No: 2 lamps per unit

Grams per hour: 12 grams per hour

Lamp Life: 13000 hours

Application: Odour control

Power Connection: 240 Volts 1PH ( 3 pin provided plug / play)

Amps: 1.0 A

Safety Switch: YES ON/OFF

Maintenance / service access: 800 mm x 800 mm

Power Interlocked: Must be electrically interlocked with the kitchen exhaust fan

Note: Multiple Duo series can be installed for increase airflow requirements.

Certified to : AS 1668.1 and AS 1668.2 certified to BCA performance requirements can be utilised for alternative solution compliance

UL listed and certified UV lamps and ballast

DUCT MOUNTED UV OZONE

QUICK OVERVIEW

UL certified Duct mounted uv ozone lamps

Duct mounted uv ozone designed to remove grease odours and oil from the kitchen exhaust systems.

UV OZONE LAMPS INSERTED INTO THE DUCTWORK

UV ozone lamps are installed in the ducting, with the ballast and housing located outside the kitchen exhaust ductwork.

REDUCING FIRE RISK IN THE DUCTWORK

UV exposure lessens the danger of fire related with the use of ultraviolet ozone technology by minimising the buildup of grease and oil in the ducting through photolysis and ozonolysis.

UL CERTIFIED UV LIGHTS AND BALLAST

IS YOUR UV LAMPS AND BALLAST ELECTRICAL CERTIFIED?

AOS is the only company to have uv lamps and ballast certification for safe use.

The benefit of electrical certification its safety is passed on the customer to minimise risk.

OZONE INJECTION IN THE DUCTWORK

UV ozone lamps generate ozone, which is then injected into the ducting, destroying cooking odours, grease and oil buildup.

185 NM WAVELENGTH RADIATION

UV lights built of special fused quartz glass that emits 185 nm wavelength radiation.

LED INDICATORS

On/Off switch and two blue LED indicators for UV and ozone are situated on the front of the device.

TECHNICAL DATA DUCT MOUNTED UV OZONE
